Naked Molecules Dancing in Liquid Become Visible

- IBS scientists visualize unstained chains of atoms, called polymers, moving inside tiny graphene pockets under electron microscopes -

Moving, vibrating and leaping molecules make up our world. However, capturing their movement is not an easy task. IBS scientists at the Center for Soft and Living Matter, within the Institute for Basic Science (IBS), were able to see the movement of molecules stored inside a graphene pocket without the need to stain them. Published in Advanced Materials, this study paves the way for observing the dynamics of life building blocks, like proteins and DNA, as well as the self-assembly of other materials.

One third of the diameter of a human hair is approximately the smallest size human eyes can see unaided. To distinguish tinier objects, we need microscopes. We can appreciate cells and bacteria with optical microscopes, while viruses and molecules are visible only under an electron microscope. In the latter, images are formed by electrons shot onto a sample. As electrons have a much shorter wavelength compared to light, electron microscopy provides a much higher magnification than optical microscopy. However, the electron beam destroys the sample and if water is present, it tends to decompose into bubbles. Therefore, electron microscopy is suitable for visualizing inert, dead samples, while living material is chemically locked in place.

IBS scientists broke this rule and visualized non-fixed chains of atoms, called polymers, swimming in a liquid inside graphene pockets. These consist of 3-5 graphene layers on the bottom and two on top. The sheets are impermeable to small molecules, and also prevent the electron beam from instantly harming the sample: the scientists had an average of 100 seconds to admire the dynamic movement of individual polymer molecules, before these were destroyed by the electron beam. During these valuable seconds, molecules change position, rearrange or “jump around.” “It was amazing to watch these flexible organic macromolecules dancing around,” says Hima Nagamanasa, first co-author of the paper. “Molecules move much more quickly in bulk. We were surprised to see that they are moving more slowly here. We believe that attachment to the surface of the pocket worked in our favor to slow them down, without that we would probably see just a blurred image.”

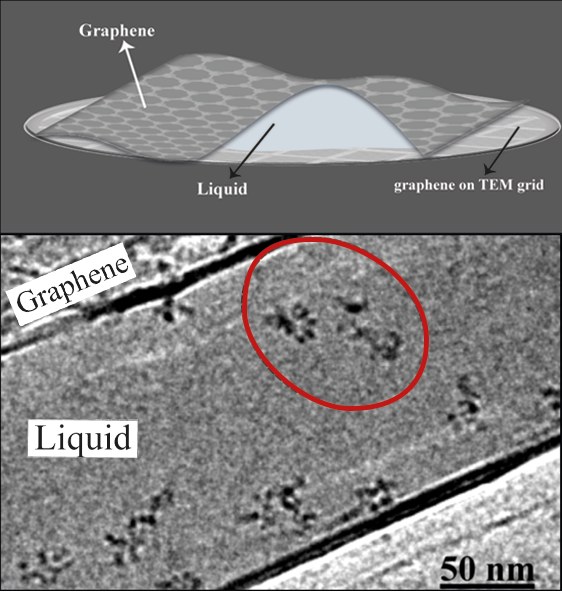

▲ Figure 1: The graphene pocket.IBS scientists produced thin but robust graphene pockets (top) in order to visualize moving molecules under a standard transmission electron microscope (TEM). The graphene layers contain the sample and also protect it from the electron beam for an average of 100 seconds. The electron microscope image (bottom) shows the individual molecules of polystyrene sulfonate (red circle). (K. Hima Nagamanasa, Huan Wang, and Steve Granick. Liquid-Cell Electron Microscopy of Adsorbed Polymers. Advanced Materials (2017) Copyright Wiley-VCH Verlag GmbH & Co. KGaA. Reproduced with permission.)

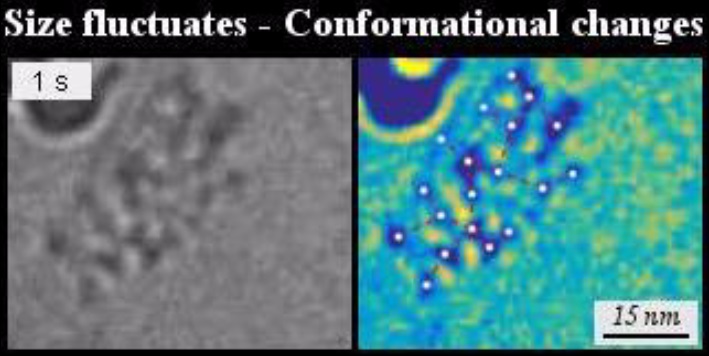

▲ Video 1:Dancing inside a graphene pocket.

IBS researchers visualized the movement of a long chain of atoms, polymer, contained inside a liquid pocket. The pocket is made of graphene and it allows the molecule to be seen without the need to fix it in place or stain it. While the transmission electron microscope captures the images in black and white (left), it is possible to add colors (right) to guide viewers eyes to the molecule's movement. The experiment was performed at room temperature under a high vacuum. (K. Hima Nagamanasa, Huan Wang, and Steve Granick. Liquid-Cell Electron Microscopy of Adsorbed Polymers. Advanced Materials (2017) Copyright Wiley-VCH Verlag GmbH & Co. KGaA. Reproduced with permission.)

Previously, scientists needed to stain samples with metal or dye molecules to make them visible inside the graphene pocket. Metal has high reflexibility, meaning it can shine, so it can be used to get good images. However, the chemical bonds between the sample and the metal or dye changes the characteristics of the sample molecule. In this study, the graphene pocket is thin enough that its content can be observed in real time without any staining.

In particular, the scientists worked with two polymers: one with sulfur, polystyrene sulfonate, and one without, polyethylene oxide. This allowed them to show that the contrast under the microscope comes from the polymer structure - made of carbon and hydrogen atoms - rather than from the sulfur. “Most molecules produced by living organisms have a backbone made of carbon and hydrogen, and that's why we hope to extend this research to the study of interactions between DNA and proteins,” explains the first co-author Huan Wang. Moreover, since the scientists used a standard electron microscope, they expect that this technique will be used in other laboratories.

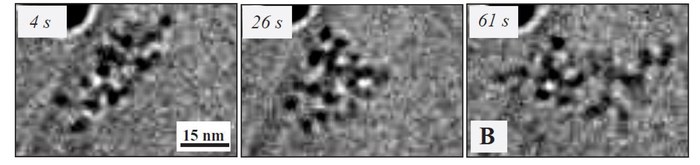

▲ Figure 2: Snapshots of a moving polymer molecule. The images taken over time (s = seconds) show how the molecule moved and rearranged. In previous experiments of this kind, the molecules were chemically fixed, so movement was not visible. This is the first time that the movement of single molecules, without any metal or dye to enhance their visibility, was observed under an electron microscope. (K. Hima Nagamanasa, Huan Wang, and Steve Granick. Liquid-Cell Electron Microscopy of Adsorbed Polymers. Advanced Materials (2017) Copyright Wiley-VCH Verlag GmbH & Co. KGaA. Reproduced with permission.)

Letizia Diamante

Notes for editors

- References
K. Hima Nagamanasa, Huan Wang, and Steve Granick. Liquid-Cell Electron Microscopy of Adsorbed Polymers. Advanced Materials (2017). DOI: 10.1002/adma.201703555

- Media Contact
For further information or to request media assistance, please contact: Mr. Shi Bo Shim, Head of Department of Communications, Institute for Basic Science (+82-42-878-8189, sibo@ibs.re.kr); Mr. Jung Gyu Kim, Global Officer, Department of Communications, Institute for Basic Science (+82-42-878-8172, jungkki1@ibs.re.kr); or Dr. Letizia Diamante, Science Writer and Visual Producer (+82-42-878-8260, letizia@ibs.re.kr).

- About the Institute for Basic Science (IBS)
IBS was founded in 2011 by the government of the Republic of Korea with the sole purpose of driving forward the development of basic science in South Korea. IBS has launched 28 research centers as of January 2017. There are nine physics, one mathematics, six chemistry, eight life science, one earth science and three interdisciplinary research centers.
