Enzymes and Bacteria Move Directionally, but Bacteria towards Food, Enzymes away

- Contrary to what previously thought, enzymes move towards areas with less substrate. They display such behavior despite not having any thinking or sensing capabilities. -

Although putting together the words “random” and “biased” can seem like a clash, these are the attributes that describe how bacteria navigate and fetch their food. They follow a random path, but biased towards the direction of the nutrients’ source. Scientists at the Center for Soft and Living Matter, within the Institute for Basic Science (IBS, South Korea), observed that enzymes, the molecules that help biological reactions to happen more quickly, move with a similar pattern, but in the opposite route: randomly traveling towards the area with fewer substrates. These results, obtained with new optical technologies and published as an inaugural article in Proceedings of the National Academy of Sciences (PNAS), are particularly intriguing as they stride away from the traditional view.

Thousands of enzymes promote a multitude of reactions in our bodies, each of which sustain our lives. Enzymes act upon other chemicals, called substrates and speed up chemical reactions that convert substrates to products. To do that, enzymes and substrates have to meet. It was originally believed that enzymes and their correspondent substrates casually bump into each other: “Standard textbooks mention that enzymes and substrates are supposed to come close ‘somehow’, interact, and that’s how reactions happen to take place. We tried to dig into the ‘somehow’ part of this process. After collecting thousands of events we concluded that enzymes’ walk is random biased, meaning that they are microscopically directional, like bacteria,” explains Ah-Young Jee, first author of this study.

The motion of swimming bacteria is known as 'run-and-tumble': run, turn and repeat. They proceed in one direction, then change direction randomly, and repeat. However, while bacteria orient towards the food supply, enzymes move to the direction of lesser substrate concentration. “Molecules lack decision making capabilities, but surprisingly move towards areas with less substrate. Indeed, the substrate introduces the direction bias, and the higher the substrate concentration we used in the experiment, the stronger this tendency. We hypothesize that it could be a way to make the product concentration uniform around the medium, even when substrate concentration is not,” clarifies Prof. Tsvi Tlusty, who offered the theoretical understanding of this research.

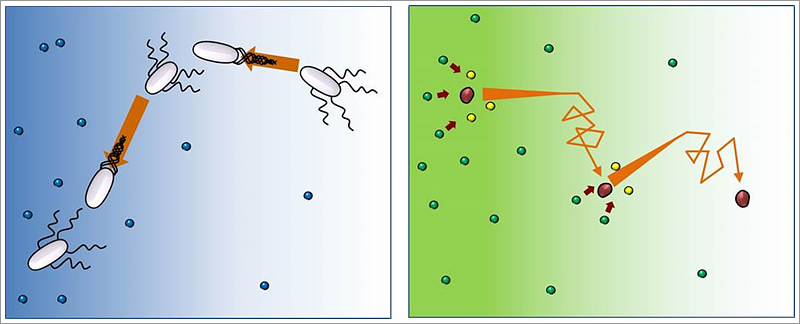

Figure 1Run-and-tumble movement pattern for swimming microorganisms (left) and enzymes (right) (not to scale). In the presence of food (blue), bacteria (white) swim straight, then change orientation (tumble), and follow this pattern over and over again. This study shows that enzymes (red) move in the same way, but after reacting with substrates (from green to yellow), they continue to run-and-tumble away from the higher concentration of substrates.

As each enzymes’ stride is only around 50 nanometers in length, extremely precise devices are needed to measure their speed and orientation. The research team, led by Steve Granick, looked at the enzymatic motion with a super-resolution microscopy technology, known as stimulated emission-depletion fluorescence correlation spectroscopy, or STED-FCS for short.

In the FCS method, enzymes are decorated with fluorescent molecules and their passage through a small dot is detected by a laser beam. Statistical information, such as the number of enzymes passing through the dot and their speed (diffusion rate), are gathered. Particularly, the team complemented FCS with STED technology, one of the strengths of this research center. STED concentrates the laser beam into an extremely small area, allowing a more refined measurement of the enzymes’ position. While the FCS’ laser beam covers an area of around 250 nanometers in diameter, which is approximately 25 times the diameter of the enzyme (10 nanometers). STED-FCS is more accurate since it reduces the beam diameter to 50 nanometers, which is comparable to the distance of an enzyme’s step.

The researchers also designed a new microfluidics chip, formed by micrometer-thick channels where liquids can pass through. Previous studies, using FCS without STED and a different microfluidics chip, suggested that the enzymes move towards the area with the highest concentration of substrate. However, this new technology allows deeper observations and showed the opposite. The authors think that the results differ because detailed information about the enzyme motion was canceled out using a larger laser beam. It would be similar to localizing someone within 50 square kilometers or within 2 square kilometers, the latter is more accurate.

They created conditions where the enzyme is uniformly distributed inside the chip, but the substrate concentration varies from left to right: from a minimum concentration on the right side of the chip, to a maximum concentration on the left. Then, they used FCS to observe the enzyme’s concentration and speed inside the chip, and found that the enzyme tends to accelerate towards the area with lesser substrate concentration (that is towards the right side of the chip). Instead, when no substrate is present, the enzymes do not change their speed. Moreover, the super-resolution capabilities of STED-FCS showed run-and-tumble dynamics.

The team observed the same behavior with two enzyme-substrate couples separately: urease-urea and acetylcholinesterase (AChE)-acetylcholine. The former enzyme is used by some microorganisms to change urea into ammonia and carbonic acid, the latter plays an essential role in neuromuscular junctions.

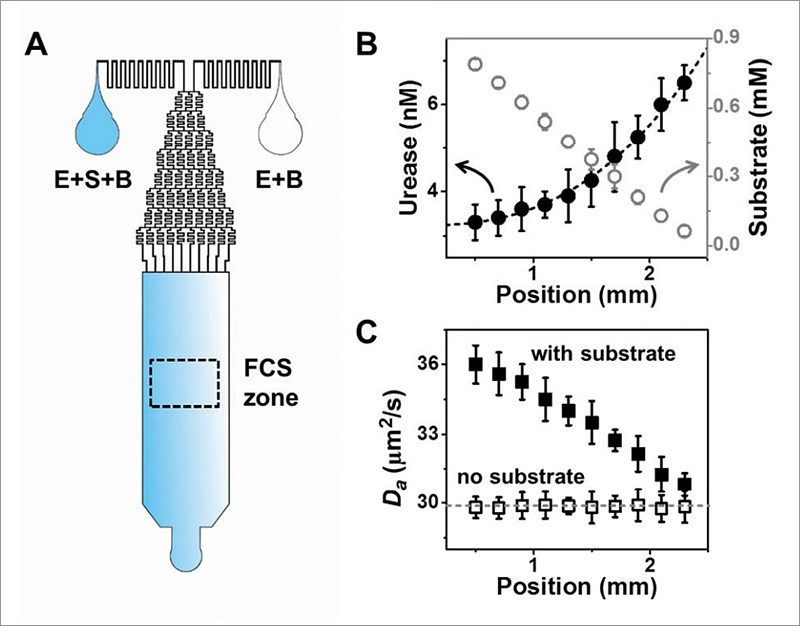

Figure 2Microfluidic chip used for the experiment. A) Enzyme-substrate-buffer (E+S+B) enters into the left inlet, and enzyme-buffer (E+B) is injected to the right inlet. In this way, the enzyme concentration is uniform all over the entire chip, while the substrate concentration is higher in the left side (blue) gradually decreasing towards the right (white). The dashes rectangle indicates the area where the enzyme movement is studied in great detail using STED-FCS microscopy technology. B) The concentration of the enzyme urease (black) and the concentration of urea (its substrate, gray) are plotted against the position within the FCS zone, between 0 and 2.5 millimeters from the laser beam. The scale at each point is an error bar, showing the standard deviation over five repeated measurements. C) The diffusion coefficient (Da), which indicates how fast the enzyme is moving, does not change in the absence of substrate, but it increases when the substrate is present, meaning that the enzyme is moving faster to the right.

In the future, the research team aims to expand the complexity of the study and test conditions more similar to real life: “This study looked at the behavior of one enzyme in response to one substrate. Next, we plan to look at several enzymes at the same time. Our body functions with a cascade of reactions, meaning that one reaction triggers the next: enzyme A triggers enzyme B, then B triggers C, and so on. STED-FCS analysis could be a key tool to advance metabolic research by revealing how these multiple enzymatic systems are organically related,” concludes Jee.

Letizia Diamante

Notes for editors

- References
Ah-Young Jee, Sandipan Dutta, Yoon-Kyoung Cho, Tsvi Tlusty, and Steve Granick. Enzyme Leaps Fuel Anti-Chemotaxis. PNAS (2017). DOI:

- Media Contact
For further information or to request media assistance, please contact: Mr. Shi Bo Shim, Head of Department of Communications, Institute for Basic Science (+82-42-878-8189, sibo@ibs.re.kr); Mr. Jung Gyu Kim, Global Officer, Department of Communications, Institute for Basic Science (+82-42-878-8172, jungkki1@ibs.re.kr); or Dr. Letizia Diamante, Science Writer and Visual Producer (+82-42-878-8260, letizia@ibs.re.kr).

- About the Institute for Basic Science (IBS)
IBS was founded in 2011 by the government of the Republic of Korea with the sole purpose of driving forward the development of basic science in South Korea. IBS has launched 28 research centers as of January 2017. There are nine physics, one mathematics, six chemistry, eight life science, one earth science and three interdisciplinary research centers.
