Novel sponge-like 2D material with interesting electrical conductivity and magnetic properties

Researchers synthesize a new 2D Metal Organic Framework with an ever-growing list of possible applications

Chemists at the Center for Multidimensional Carbon Materials (CMCM), within the Institute for Basic Science (IBS, South Korea), have reported the synthesis of a novel type of 2D metal organic framework (MOF) with interesting electrical conductivity and magnetic properties. Published in the Journal of the American Chemical Society, this new material may potentially contribute to optoelectronics, photovoltaics, (photo)electrocatalysis, and energy storage.

Also known as sponge-like or Swiss-cheese-like materials, MOFs are made of metal ions connected to organic ligands and are characterized by nano-sized holes. IBS researchers in collaboration with the School of Materials Science at the Ulsan National Institute of Science and Technology (UNIST) designed and synthesized Ni(II) tetraaza[14]annulene-linked MOF (NiTAA-MOF), where the metal component is nickel and the nickel tetraaza[14]annulene molecules are used as MOF building blocks for the first time.

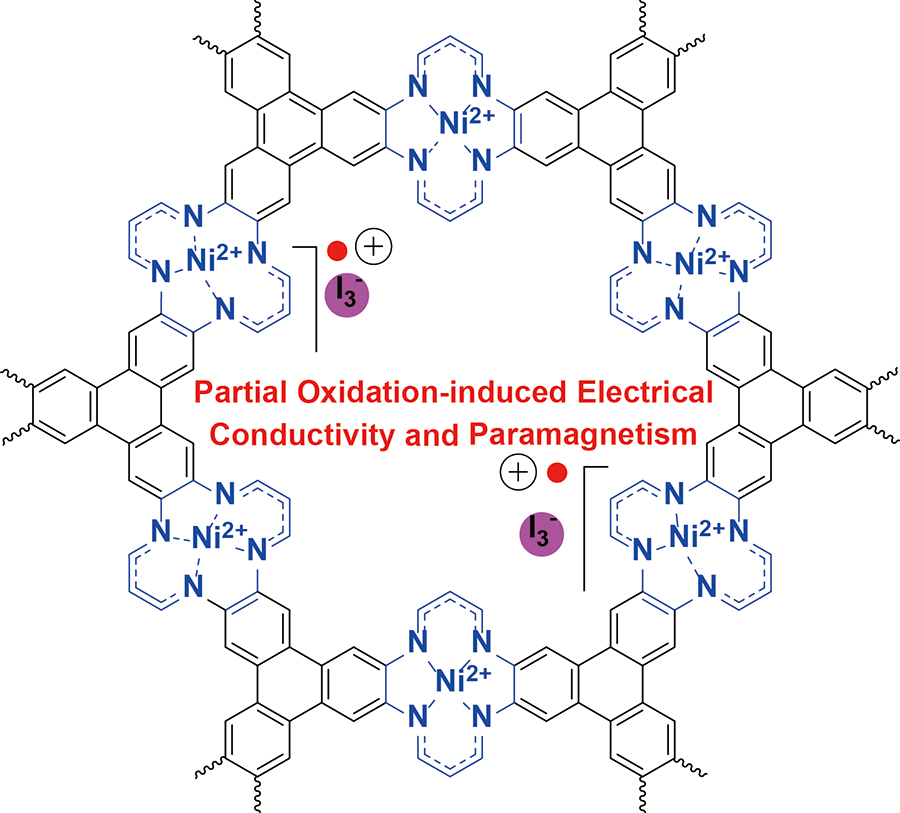

Figure 1. Chemical structure of iodine-doped Ni(II) tetraaza[14]annulene-linked MOF (NiTAA-MOF). While NiTAA-MOF is an insulator, the oxidized molecule acquires electrical conductivity and paramagnetism.
▲ Figure 1. Chemical structure of iodine-doped Ni(II) tetraaza[14]annulene-linked MOF (NiTAA-MOF). While NiTAA-MOF is an insulator, the oxidized molecule acquires electrical conductivity and paramagnetism.

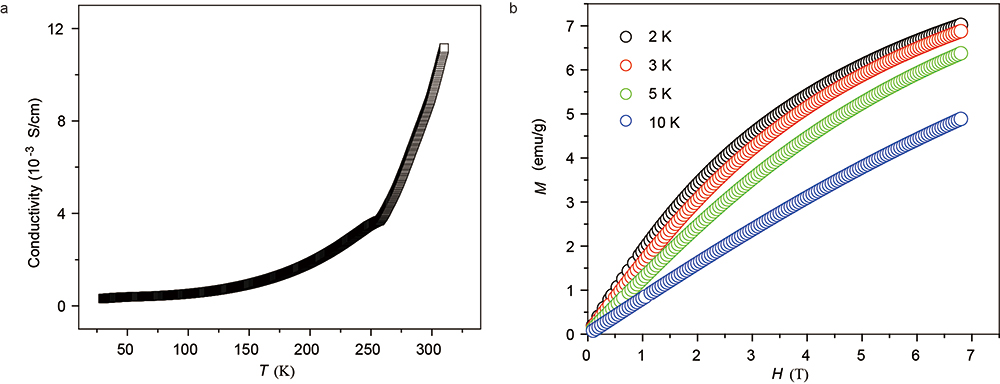

Figure 2. Electrical conductivity and magnetic properties of iodine-doped NiTAA-MOF. a) Electrical conductivity as a function of temperature. b) Magnetization increases with decreasing temperature, a typical feature of paramagnetic materials.
▲ Figure 2. Electrical conductivity and magnetic properties of iodine-doped NiTAA-MOF. a) Electrical conductivity as a function of temperature. b) Magnetization increases with decreasing temperature, a typical feature of paramagnetic materials.

The researchers discovered that doping this MOF with iodine changes its conductivity and magnetism. Pristine NiTAA-MOF conducts poorly. It is actually an insulator with an electrical conductivity smaller than 10-10 Siemens per centimeter. However, when it is chemically oxidized by iodine, the same measurement rises to 0.01 Siemens per centimeter (the larger this number, the better the conductor). This result shows the vital role of ligand oxidation in the electrical conductivity of some 2D MOFs, expanding the understanding of the origin of electrical conductivity in this type of MOFs.

In addition, the team checked how this material becomes magnetized in an applied magnetic field. Magnetization measurements performed by the researchers of the School of Materials Science showed that iodine-doped NiTAA-MOF is paramagnetic, that is it is weakly attracted by an external magnetic field, and becomes antiferromagnetic at very low temperatures. This means that it could become useful as a polarizing agent in dynamic nuclear polarization-nuclear magnetic resonance (DNP-NMR) that is used in experiments for material characterization.

The 2D MOF structure was also modeled through detailed calculations and analyzed by a variety of methods, such as X-ray diffraction, infrared, X-ray photoelectron, diffuse reflectance UV-vis, electron paramagnetic resonance, and Raman spectroscopies.

“Our work can contribute to the fundamental understanding of structure-property relationships in 2D electrically conductive MOFs, and may pave the way to develop new electrically conductive MOFs,” says Professor Ruoff, one of the corresponding authors of this study and UNIST professor. “Besides, the as-synthesized and iodine-doped NiTAA-MOF might be applicable in catalase mimics, catalysis, and energy storage.”

Notes for editors

- References
Yi Jiang, Inseon Oh, Se Hun Joo, Onur Buyukcakir, Xiong Chen, Sun Hwa Lee, Ming Huang, Won Kyung Seong, Sang Kyu Kwak, Jung-Woo Yoo, and Rodney S. Ruoff. Partial Oxidation-Induced Electrical Conductivity and Paramagnetism in a Ni(II) Tetraaza[14]annulene-Linked Metal Organic Framework. JACS (2019). DOI: 10.1021/jacs.9b08601

- Media Contact
For further information or to request media assistance, please contact Director Rodney Ruoff (ruofflab@gmail.com); Mr. Kyungyoon Min, Head of IBS Communications Team (+82-42-878-8156, kymin@ibs.re.kr); or Ms. Dahee Carol Kim, Public Information Officer of IBS & Science Communicator (+82-42-878-8133, clitie620@ibs.re.kr)

- About the Institute for Basic Science (IBS)
IBS was founded in 2011 by the government of the Republic of Korea with the sole purpose of driving forward the development of basic science in South Korea. IBS has launched 29 research centers as of October 2019. There are nine physics, two mathematics, six chemistry, seven life science, one earth science, and five interdisciplinary research centers.
