Scientists capture the moments of nascent crystal formation and growth

The crystals undergo stochastic fluctuation between crystalline and disordered states at the earliest stage of growth

Conversion of most materials into organized crystalline structure starts with the nucleation process. One everyday example that many people may be familiar with is the rapid crystalization of supercooled water after the nucleation of a seed crystal. This phenomenon has been perplexing both scientists and ordinary people alike. The nucleation process, in which the atoms gather and form the smallest crystals, has been an important scientific phenomenon that has been widely studied since the late 1800s. The classical nucleation theory states that the assembly of monomers into a crystal structure occurs in a one-directional fashion. On the other hand, there have been some who suggested that a non-classical crystallization process involving metastable intermediate crystal structures may occur in some systems. However, it has been extremely difficult to confirm these theories through direct observation because the nucleation occurs very rapidly, and the size of a nucleus can be as small as a few atoms.

This century-old mystery has been finally solved by an international joint research team led by LEE Won Chul, Professor of Mechanical Engineering at Hanyang University Erica Campus, JEON Sungho, Postdoctoral Researcher of Mechanical Engineering at Hanyang University Erica Campus, PARK Jungwon, Professor of School of Chemical and Biological Engineering at Seoul National University and Center for Nanoparticle Research within the Institute for Basic Science (IBS), and Peter ERCIUS from Lawrence Berkeley National Laboratory. The joint research team has succeeded in observing the moment of the initial state of nanocrystal nucleation.

The scientists succeeded in filming the process where the gold atoms gather to form nanocrystals. To observe the initial state of the nucleation process, the team synthesized gold nanocrystals by emitting electron beam onto gold cyanide nanoribbons on top of a graphene membrane, which decomposes the nanoribbons into gold atoms. The synthesized specimen was observed with the high-performance transmission electron microscope (TEM) at the Lawrence Berkeley National Laboratory. The process was recorded at an atomic level spatial resolution and an ultra-high temporal resolution on a scale of milliseconds.

The TEM observation showed the abrupt disappearance and reappearance of crystal lattice structures prior to the emergence of a stable crystal structure. Through careful analysis, the team ruled out some factors which may result in such observations such as the orientation, tilt, and fast rotation of nanocrystals. Therefore, the observed results appeared to indicate that the atoms making up the nucleus randomly oscillate between the disordered and crystalline states. This structural fluctuation appeared to occur spontaneously in a stochastic manner. The team’s discovery directly challenged the longstanding nucleation theory as well as a more recent nucleation theory that has been proposed in the last two decades.

In addition, the team found that the stability of the crystalline state increased as the size of the nanocrystals increased. For example, the nanocrystals with 2.0 nm2 areas spent approximately half of the time existing in a crystalline state. When the crystal sizes increased to above 4.0 nm2 in area, the crystals appeared to exist most of the time under a crystalline form.

In order to describe this phenomenon, the team proposed a new thermodynamic theory of crystal nucleation. The study proposed that the energy barrier between crystalline to disordered transformation tends to be very low in the earliest stage of nucleation when the cluster size is small and that it increases as more atoms are added to the structure. This can explain the spontaneous fluctuation between crystalline and disordered states in nascent crystals consisting of a few atoms. The team also pointed out in relatively smaller nanocrystals, even the addition of extra atoms can transfer enough energy into the system to transform the entire structure back to a disordered state. The energy barrier increases as the crystal grows, which reduces the probability of spontaneous reversion and stabilizes the crystalline structures in larger crystals.

Regarding these findings, Prof. Jungwon Park stated that "From a scientific point of view, we discovered a new principle of crystal nucleation process, and we proved it experimentally." Prof. Won Chul Lee mentioned that "In an engineering point of view, by reproducing the initial state of the deposition process, it can be used to achieve original technology in semiconductor materials, components, and equipment."

This research was published in the journal Science on January 29, 2021.

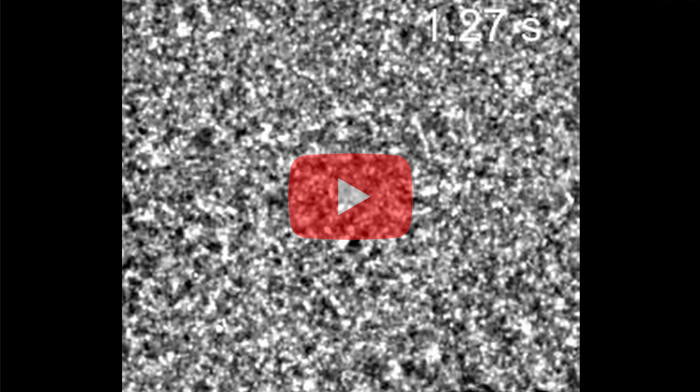

Video 1. The TEM video of gold nanocrystal formation. The video has a temporal resolution of 10 ms and is slowed down by 2x (from 100 frames per second to 50 frames per second). The scale bar denotes 1 nm. The gold atoms repeatedly undergo reversible transitions between disordered state and crystalline state early on during the crystallization process, before becoming stabilized as the crystal grows larger.
▲ Go to watch the video.

Video 1. The TEM video of gold nanocrystal formation. The video has a temporal resolution of 10 ms and is slowed down by 2x (from 100 frames per second to 50 frames per second). The scale bar denotes 1 nm. The gold atoms repeatedly undergo reversible transitions between disordered state and crystalline state early on during the crystallization process, before becoming stabilized as the crystal grows larger.

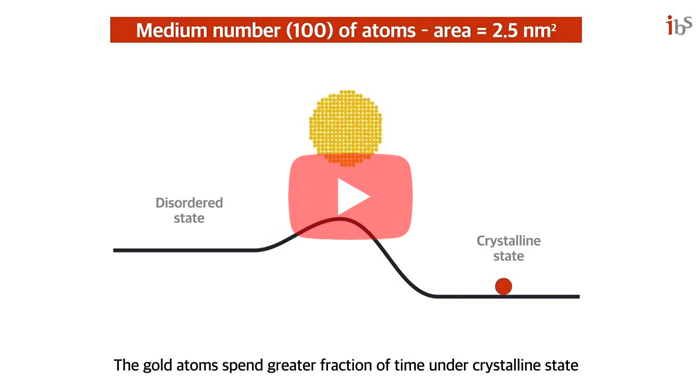

Video 2. The 2D animation shows the concept behind the new thermodynamic theory proposed by this research.
▲ Go to watch the video.

Video 2. The 2D animation shows the concept behind the new thermodynamic theory proposed by this research.

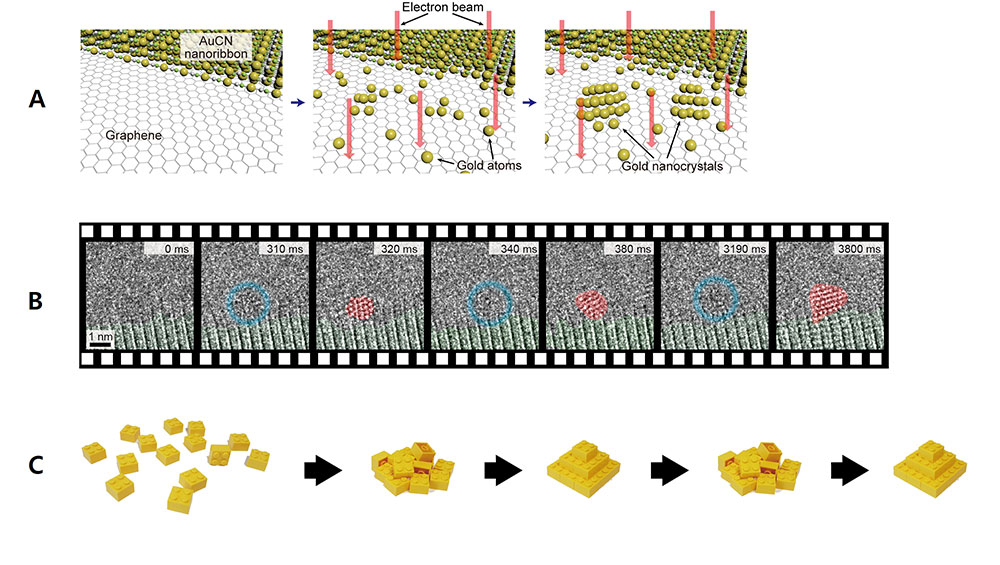

Figure 1. A) The schematics of the experiment. The AuCN nanoribbons on top of a graphene membrane were irradiated with electron beams. This decomposes the ribbons to generate gold atoms, which subsequently nucleate into nanocrystals. B) Still frames of the TEM video at various points of the nucleation process. C) Lego block model representation of transition of the gold nanocrystal structure between disordered and crystalline states.
▲ Figure 1. A) The schematics of the experiment. The AuCN nanoribbons on top of a graphene membrane were irradiated with electron beams. This decomposes the ribbons to generate gold atoms, which subsequently nucleate into nanocrystals. B) Still frames of the TEM video at various points of the nucleation process. C) Lego block model representation of transition of the gold nanocrystal structure between disordered and crystalline states.

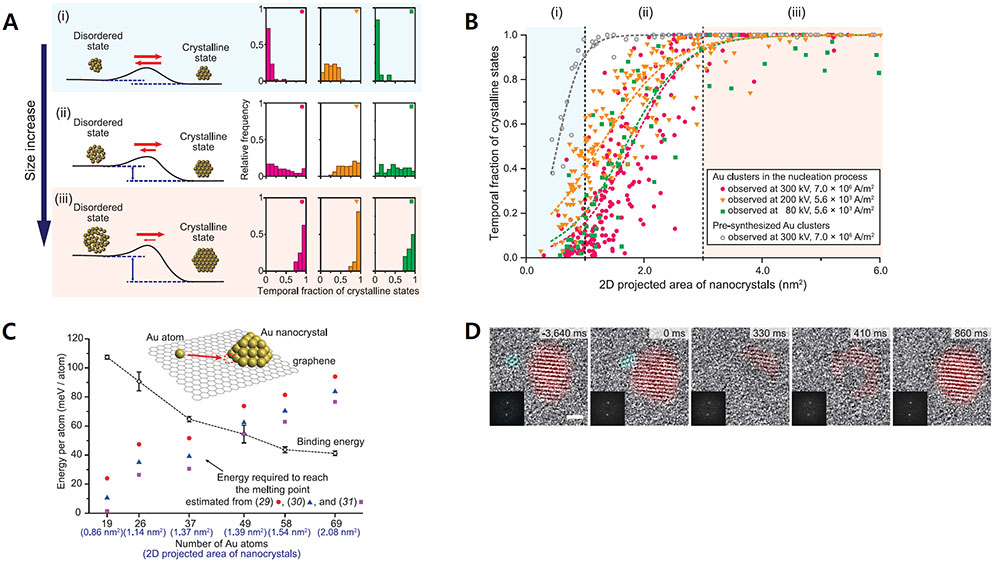

Figure 2. A) The new thermodynamic theory behind the nucleation process that the team proposed. The energy barrier between disordered and crystalline state is relatively low when the structure has relatively fewer atoms. The energy barrier increases and the crystalline state becomes more stable as the crystal size increases. B) The fraction of time in which the atoms exist under crystalline state versus the area of the nanocrystals. C) The energy required to reach a depressed melting point versus the number of gold atoms within the crystal. D) Merger between smaller and larger nanocrystals temporarily converts the entire structure back to a disordered state.
▲ Figure 2. A) The new thermodynamic theory behind the nucleation process that the team proposed. The energy barrier between disordered and crystalline state is relatively low when the structure has relatively fewer atoms. The energy barrier increases and the crystalline state becomes more stable as the crystal size increases. B) The fraction of time in which the atoms exist under crystalline state versus the area of the nanocrystals. C) The energy required to reach a depressed melting point versus the number of gold atoms within the crystal. D) Merger between smaller and larger nanocrystals temporarily converts the entire structure back to a disordered state.


Notes for editors

- References
Sungho Jeon, Taeyeong Heo, Sang-Yeon Hwang, Jim Ciston, Karen C. Bustillo, Bryan W. Reed, Jimin Ham, Sungsu Kang, Sungin Kim, Joowon Lim, Kitaek Lim, Ji Soo Kim, Min-Ho Kang, Ruth S. Bloom, Sukjoon Hong, Kwanpyo Kim, Alex Zettl, Woo Youn Kim, Peter Ercius, Jungwon Park, Won Chul Lee “Reversible disorder-order transitions in atomic crystal nucleation,” Science, (2021)

- Media Contact
For further information or to request media assistance, please contact Professor Jungwon Park from the Center for Nanoparticle Research, Institute for Basic Science (IBS) (jungwonpark@snu.ac.kr), Professor Won Chul Lee from Hanyang University (wonchullee@hanyang.ac.kr), or William I. Suh at the IBS Communications Team (willisuh@ibs.re.kr)

- About the Institute for Basic Science (IBS)
IBS was founded in 2011 by the government of the Republic of Korea with the sole purpose of driving forward the development of basic science in South Korea. IBS has 31 research centers as of September 2020. There are ten physics, three mathematics, six chemistry, six life science, one Earth science, and five interdisciplinary research centers.

- About the Molecular Foundry
Supported by the U.S. Department of Energy Office of Basic Energy Sciences (BES) through their Nanoscale Science Research Center (NSRC) program, the Molecular Foundry is a national User Facility for nanoscale science serving hundreds of academic, industrial, and government scientists around the world each year.
